NEW QUESTION # 116

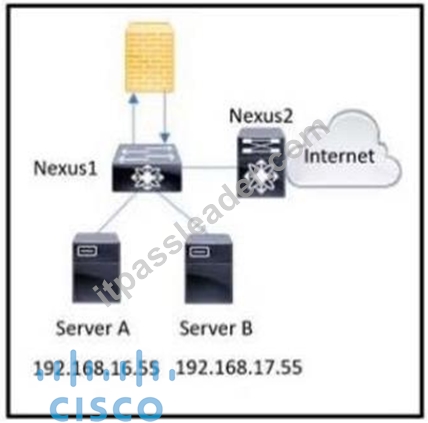

Refer to the exhibit. The Cisco Nexus Series Switch with hostname Nexus1 is the default gateway for server A and server B. Both servers must have reachability to the internet, however, server A internet traffic must pass through the firewall for deep packet inspection. Also, the firewall must inspect any communication between server A and server B. Which solution must be applied to separate the data plane path for server A and server B?
- A. VLAN
- B. VXLAN
- C. VRF
- D. VDC
Answer: C
NEW QUESTION # 117

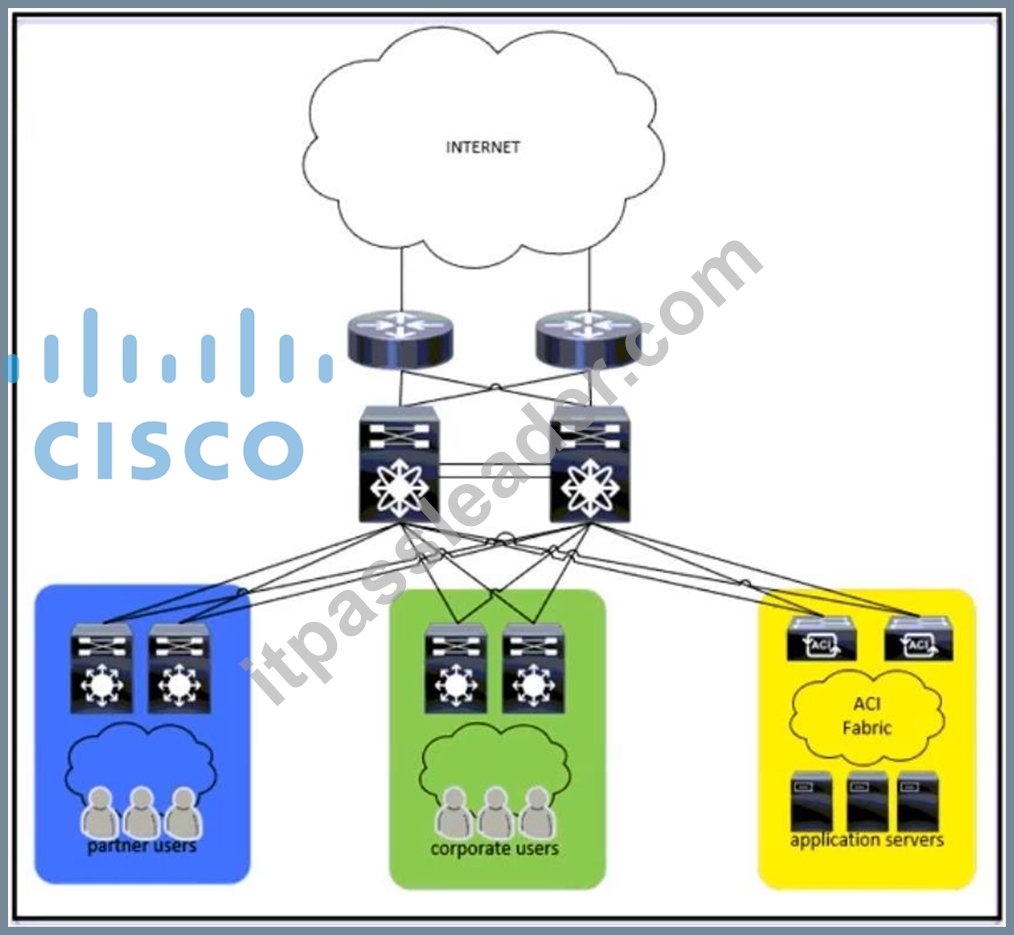

Refer to the exhibit. The security team created a new security policy that requires certain types of traffic to be subject to deep packet inspection. The traffic types are:
- internet traffic to application servers
- internet traffic to corporate users
- partner network traffic to application servers
- partner network traffic to corporate users
Where must the next-generation firewalls be inserted to implement the new policy?
- A. inline insertion between the user network switch cluster and the core cluster
- B. inline insertion between the edge router duster and the core switch duster
- C. one-armed insertion from the ACl border leaf duster
- D. one-armed insertion from the core switch cluster
Answer: D
NEW QUESTION # 118
An engineer is building a data center network with VXLAN EVPN. The requirement is to use multicast for the broadcast, unknown unicast, and multicast replication.
Which two VNI to multicast group mapping methods must be used to meet these requirements?
(Choose two.)
- A. many VNI to one multicast group
- B. many NVE to one multicast group
- C. one VNI to one multicast group
- D. many VNI to many multicast groups
- E. one NVE to many multicast groups
Answer: A,B
NEW QUESTION # 119
A client in a commercial building installs a Cisco blade server in the multitenant Cisco UCS blade infrastructure. To cut operating costs, the client's data center is shared with other organizations.
The client asks an engineer to prevent third parties from accessing their equipment and from accessing BIOS-related information when booting a server.
Which two policies must be used to meet these requirements? (Choose two.)
- A. CDN control
- B. post error pause
- C. ASPM support
- D. front panel lockout
- E. quiet boot
Answer: A,E
Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User- Guides/Server-Mgmt/3-
2/b_Cisco_UCS_Manager_Server_Mgmt_Guide_3_2/b_Cisco_UCS_Manager_Server_Mgmt_Gu ide_3_2_chapter_01110.html Quiet boot is what the BIOS displays during booting the server. If enabled, the BIOS displays the logo screen.
I believe that quiet boot and CDN control may have the customer name.
NEW QUESTION # 120

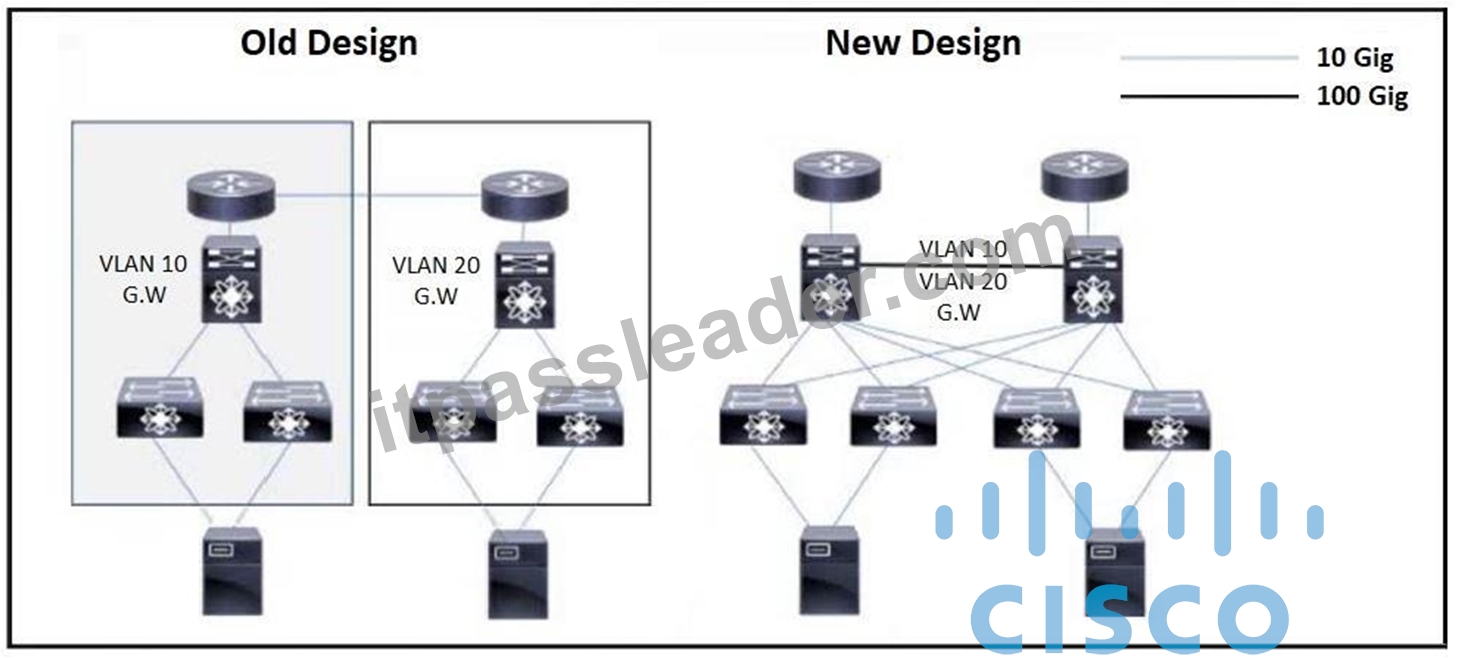

Refer to the exhibit. An engineer is creating a new data center design for a customer. The design must support virtual applications, enhance network resilience, and meet these requirements:
- Extend Layer 2 across all network segments to support endpoint
mobility.
- Access switches will support up to 20 GB capacity for north-south and east-west traffic.
- Provide fast convergence during link failures.
- MAC address advertisement will not depend on the control plane.
Which solution must the engineer include in the design between the access and distribution switches?
- A. vPC
- B. DMVPN
- C. BGP-EVPN
- D. PVSTP
Answer: A
Explanation:
vPC extends Layer 2 between switches with active-active forwarding, supports high throughput, has fast failure convergence, and relies on data plane learning (MAC advertisement not dependent on control plane protocols).
NEW QUESTION # 121

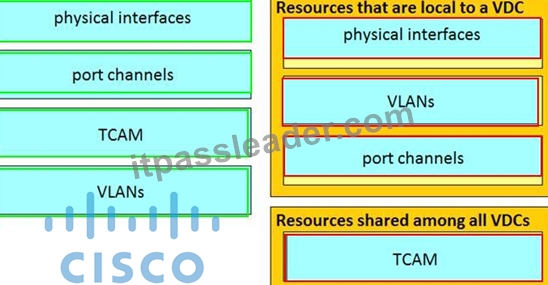

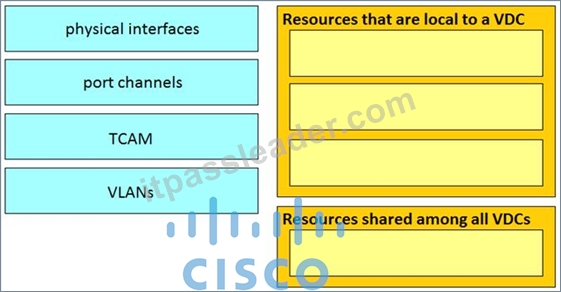

Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.
Answer:
Explanation:
NEW QUESTION # 122
Refer to the exhibit.

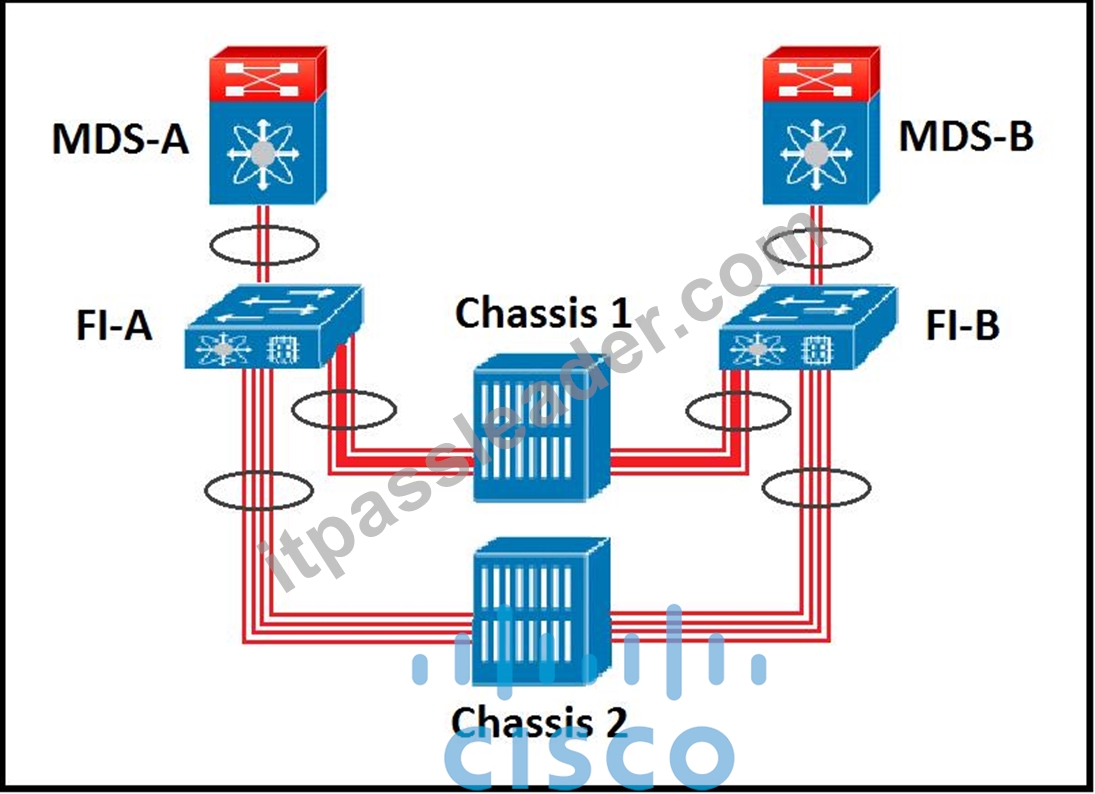

An engineer must assign multiple Fibre Channel IDs to a single port channel. Which two features must be enabled this goal? (Choose two.)
- A. SAN Pin Groups on the Cisco UCS Fabric Interconnects.
- B. NPV feature on the Cisco MDS Series.
- C. end-host mode feature on the Cisco UCS Fabric Interconnects
- D. NPIV feature on the Cisco MDS Series
- E. Smart Zoning feature on the Cisco UCS Fabric Interconnects
Answer: B,D
NEW QUESTION # 123
Refer to the exhibit. A Cisco engineer is configuring a customer scenario with 2 x MDS 9000 switches 24 x UCS B200M6 blade servers. UCS 64S4 Fabric Interconnect in end-host mode and 3 x UCS 5108 server chassis with 2408 Fabric Extenders The engineer installs 6 x SQL Server 2019 on all blades and then notices that there are read and write latencies What is the best way to balance the utilization across the shared ports?
- A. Set 4 Gbps performance buffers
- B. Change the assigned speed to 8 Gbps Auto.
- C. Enable "Only dedicate rate mode
- D. Disable restrictions on oversubscription ratios
Answer: D
Explanation:
Reference:
When restrictions on oversubscription ratios are disabled, the bandwidth allocation among the shared ports is proportionate to the configured speed. (If the configured speed is auto, then bandwidth is allocated assuming a speed of 4 Gbps.) For example, if you have three shared ports configured at 1, 2, and 4 Gbps, then the allocated bandwidth ratio is 1:2:4. In Cisco SAN-OS Release 3.0 and later (or when restrictions on oversubscription ratios are enabled), port bandwidths are allocated in equal proportions, regardless of port speed, so, the bandwidth allocation for the same three ports mentioned in the example would be 1:1:1.
NEW QUESTION # 124
A storage engineer requires a solution that achieves multiple paths between a server and storage array. The design must support complete traffic isolation and support a 50% growth in the next year.
Which FCoE solution meets these requirements?
- A. at least two VSANs across the fabric
- B. single VSAN across the fabric
- C. at least two FC zone sets with multiple zones
- D. single switch with multiple links
Answer: A
NEW QUESTION # 125
An engineer must use OTV for layer 2 connectivity between data centers to support virtual machine between the customer sites. To support this requirement, the engineer must ensure the existence of the same default gateway on both sites. Additionally, the operations team report high bandwidth utilization on site A and wants to optimize the outbound traffic flows to use a DC exit point. Which feature must be used to meet these requirement?
- A. Data group
- B. ARP filter
- C. FHRP filter
- D. Control group
Answer: C
Explanation:
https://www.cisco.com/c/dam/en/us/products/collateral/switches/nexus-7000-series-switches/guide_c07-728315.pdf
NEW QUESTION # 126
Refer to the exhibit.

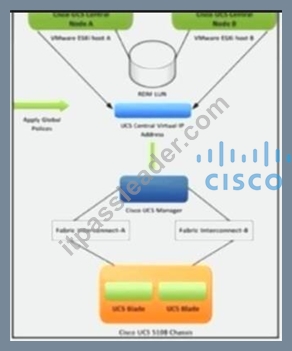

Refer to the exhibit. A network engineer must improve high availability within the given UCS infrastructure The engineer configured central nodes A and B in cluster mode to ensure that traffic fails over in the case of a network outage. Which type of redundancy will the cluster configuration provide?
- A. link-level redundancy via one management port
- B. redundancy for the management plane only
- C. redundancy for the management, control, and data planes
- D. redundancy via a single fabric interconnect
Answer: C
NEW QUESTION # 127
Which programming model is vendor-agnostic and uses separate containers or models for operational and configuration data?
- A. open YANG
- B. OpenConfig YANG
- C. native YANG
- D. IETF YANG
Answer: B
NEW QUESTION # 128

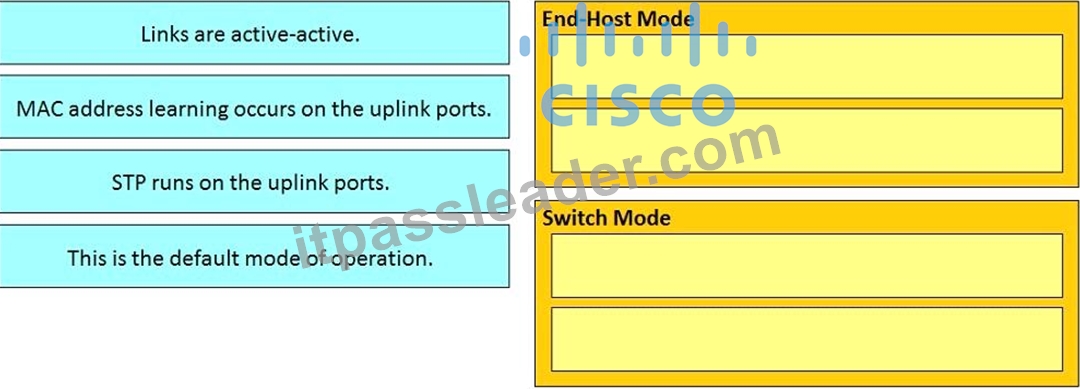

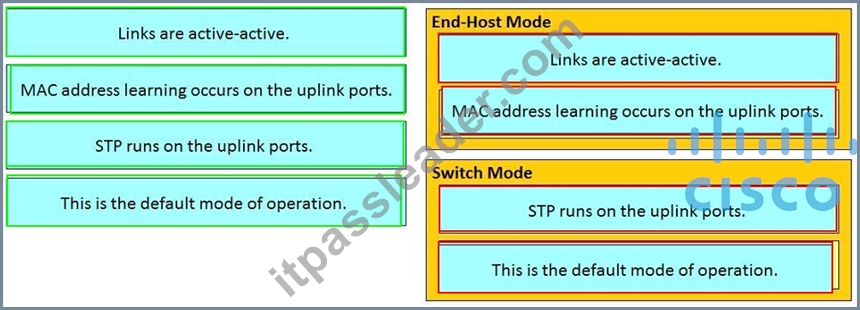

Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.
Answer:
Explanation:
NEW QUESTION # 129
A network engineer needs to design a highly available data center to meet these requirements:
- ensure network resilience
- reduce network instability for Layer 3 gateway devices
- provide interoperability in multivendor environments
- support IPv4 and IPv6 address families
Which FHRP meets these requirements?
- A. VRRPv3
- B. HSRPv2
- C. VRRP
- D. HSRP
Answer: C
NEW QUESTION # 130

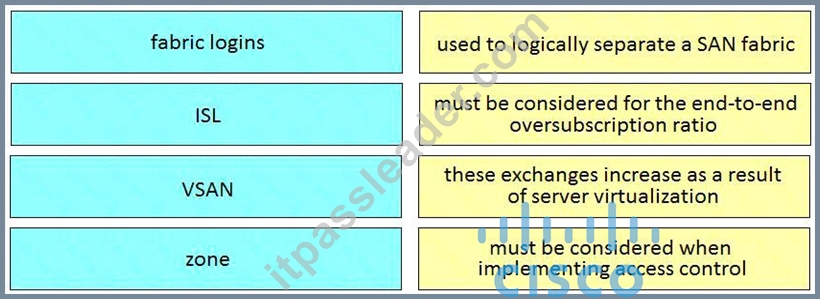

Drag and drop the SAN components from the left onto the correct design considerations on the right.
Answer:
Explanation:
NEW QUESTION # 131

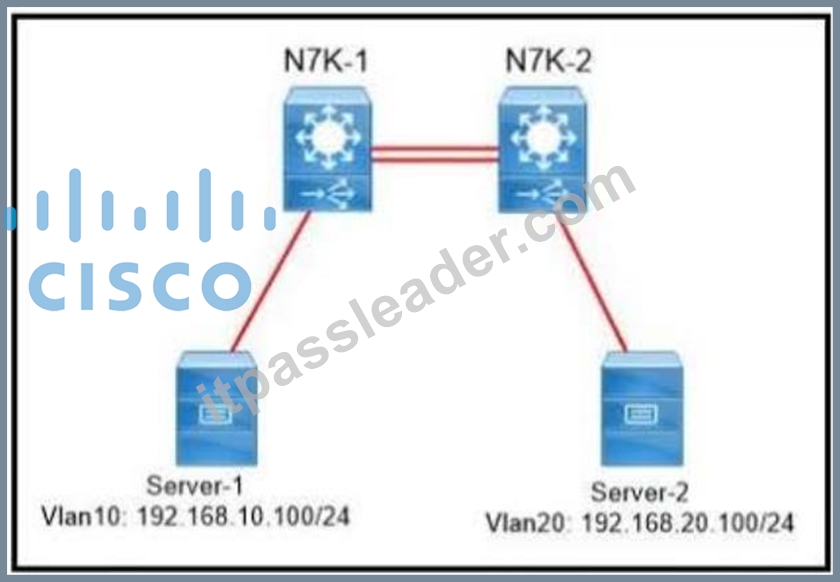

Refer to the exhibit. A system administrator needs a solution to manage random packet drops between two Cisco UCS C240 M4 servers. The servers are connected to a pair of Cisco Nexus
7009 switches using 10G fibre interfaces Both servers are generating too many east-west traffic flows from TCP-based applications which causes significant latency that impacts the customer.
Also the transfer of files from Server-1 to Server-2 larger than 10 GB results in multiple retransmits. Which design solution resolves this issue?
- A. Add a second uplink to each server NIC
- B. Apply rate-limit on the server 1 VLAN interface per application flow.
- C. Connect both servers m the same VLAN
- D. Increase the amount of memory m both servers
Answer: C
NEW QUESTION # 132
......
Cisco 300-610 certification exam is a challenging exam that requires a thorough understanding of data center infrastructure design and implementation. Candidates are required to have a solid understanding of networking technologies, virtualization, storage, and compute solutions. 300-610 exam is designed to test the candidate's ability to design complex data center infrastructure solutions using Cisco technologies. Designing Cisco Data Center Infrastructure certification is recognized globally and is a valuable asset for professionals who are looking to advance their careers in the data center industry.
